Minstrel 2/3 Tact Switch Keyboard green/green PCB set
Enlarge Image - Category:
- Retro Computers >> Sinclair >> Sinclair ZX81 >> Components
- Listing type:
- Fixed Price Multiple Items
- Item Condition:
- New
- Seller location:
- Tynemouth, United Kingdom
- Ending in:
- 10 days, 17h:33m:46s
- Quantity Available
- 10
- Latest buyer:
- J***s (3)
- Fixed price:
- £15.00
Buy now!
VAT, Duty and handling fees may be payable on Price & Shipping on receipt - Shipping Costs:
- From only £2.50
- Payment methods:
- Paypal
- Number Sold:
- 5 (View history)
Buyer Value Date and hour Quantity bought J***s (3) £15.00 19/07/2023 00:21:25 1 r***k (1) £15.00 28/06/2023 11:58:57 1 Z***3 (1) £15.00 22/01/2023 17:08:21 1 g***r (4) £15.00 11/11/2022 10:42:13 1 d***a (9) £15.00 16/10/2022 00:50:17 1
 Positive |
d***a (9) | Perfect. Thank you | 16/11/2022 09:42:44 |
Item Number : 62033
Meet the seller
tynemouthsw (117)
Feedback received in last 120 days :
98 times
- Positive: 98 (100%)
- Neutral: 0 (0%)
- Negative: 0 (0%)
Contact the Seller
Add Seller To Favourites
See Other Items
View webstore Tynemouth Software
Watch ItemDescription

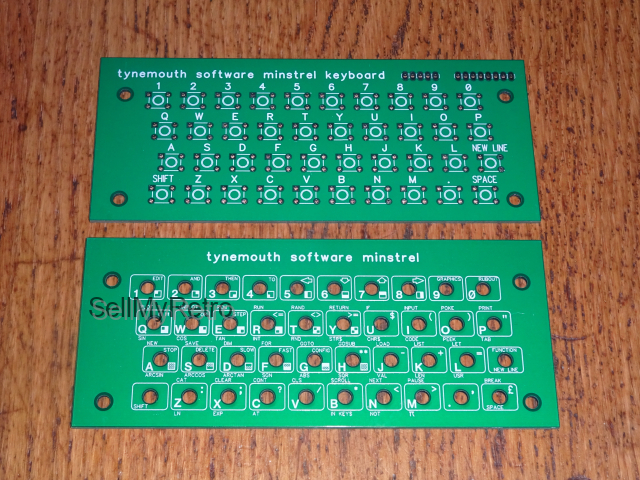

This is a two PCB set to build a keyboard for use with a Tynemouth Software Minstrel 3 computer or other ZX80/ZX81 style project.
The base PCB is the same width as the Minstrel 3 and ZX81 PCBs. Forty 6mmx6mm tact switches need to be inserted into this. The switched should be 7mm high (e.g. TE Connectivity 1-1825910-0). These will poke through the overlay, which should be mounted with 4mm spacers.
They are wired in a 5x8 matrix in the same style as the ZX80 and ZX81 (note the ZX Spectrum and Juipter Ace have slightly different layout)
This auction is for a green keyboard base PCB and green overlay PCB only with ZX81 / ZX80 8K BASIC keywords. The photos show some other versions, just to see the generate construction options. (see a separate listing for the green base PCB with no overlay or the green / white with 8K keywords or blue / blue with ZX80 4K keywords)
More information on my blog:
http://blog.tynemouthsoftware.co.uk/2019/09/minstrel-keyboard-now-with-overlay-pcbs.html
